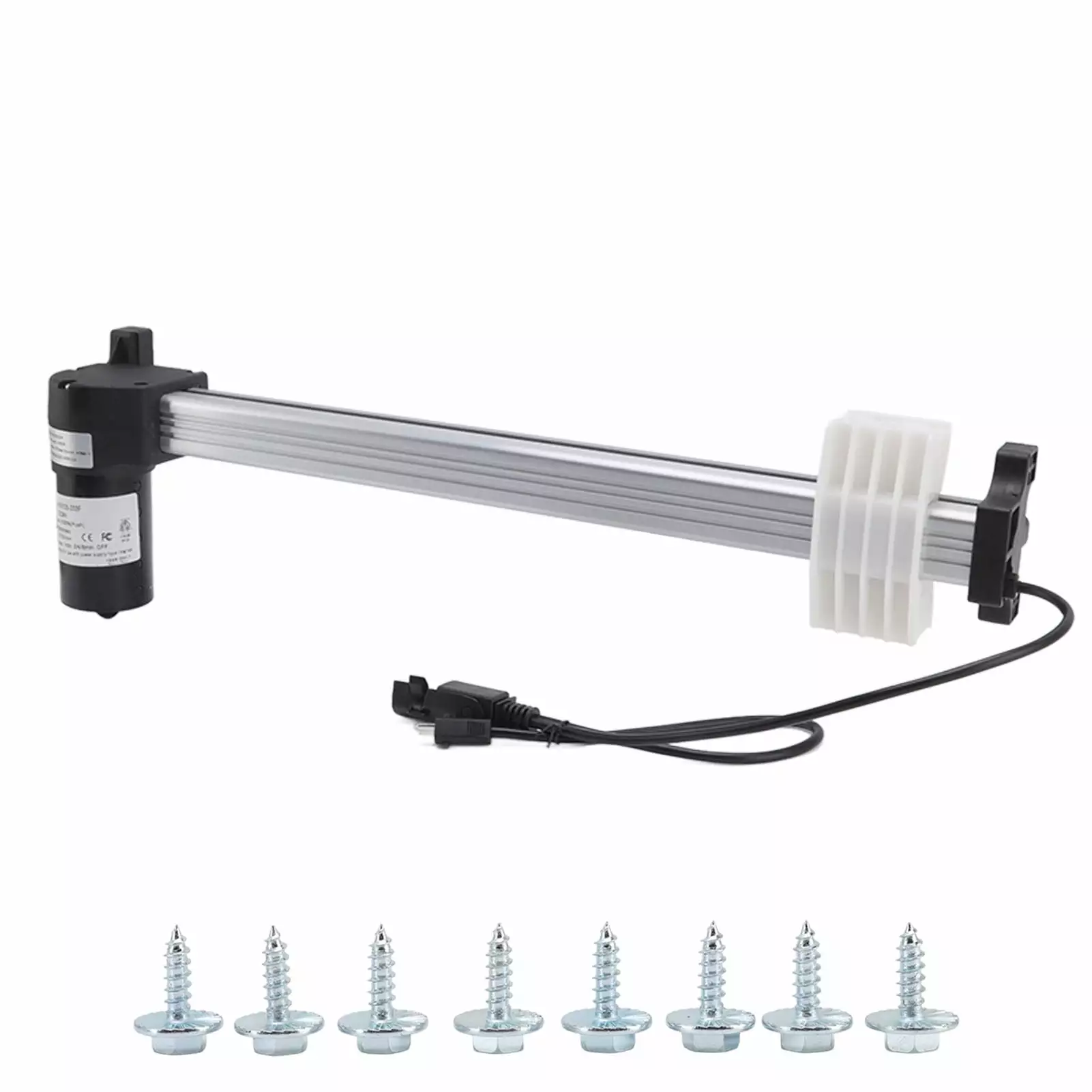

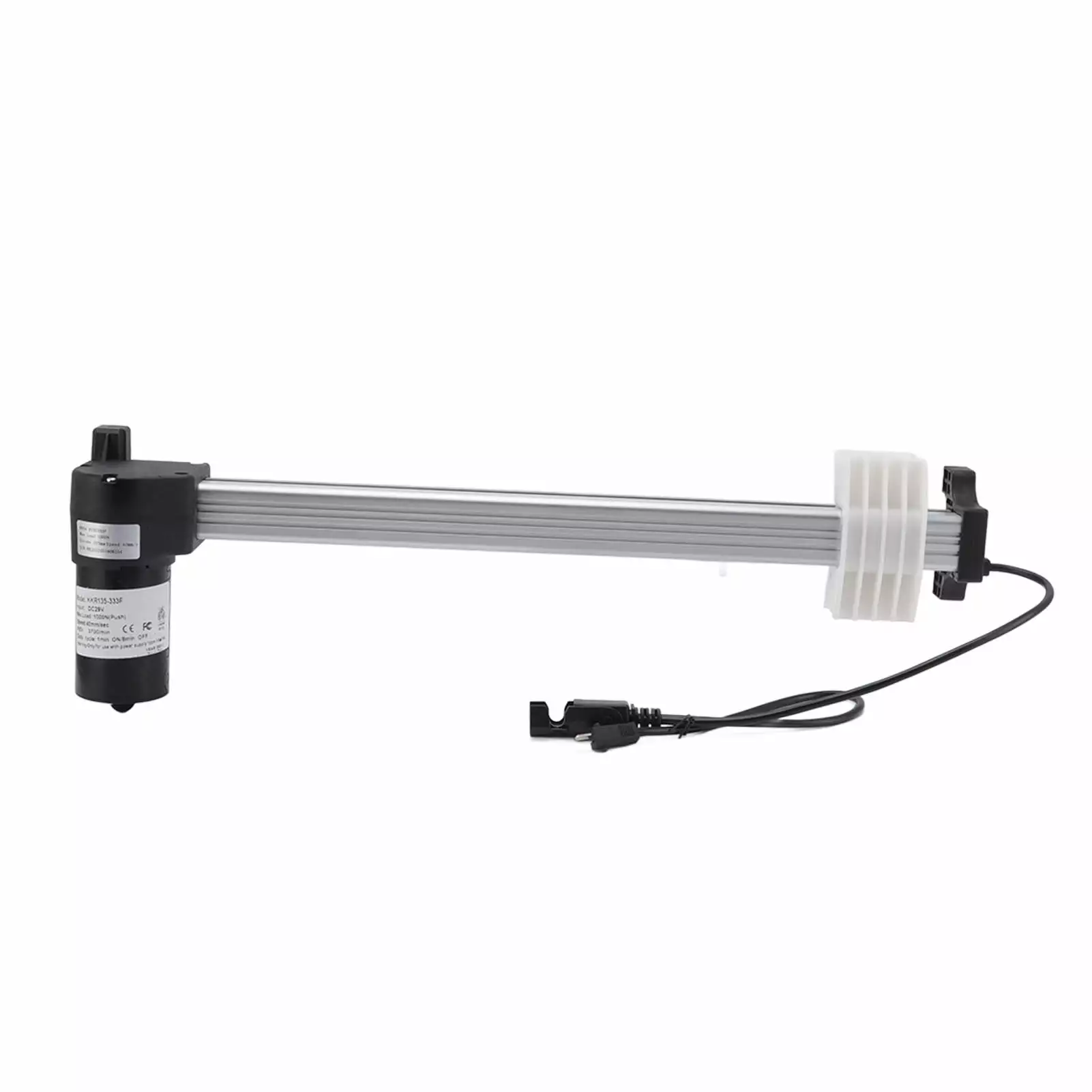

Power Recliner Sofa Motor Actuator 333mm Stroke IPX4 Protection DC29V for Electric Sofas

Item Type: Recliner sofa motor actuator

• Material: ABS. aluminum alloyInput Voltage: DC29V

  • Stroke: Approx. 333mm/13.11inInstallation Direction: H type

    • Frequency Of Use: 10%. up to 2 minutes of continuous work

      • Guide Tube: Aluminum tube

        • Mounting Connector: Plastic

          • Protection Class: IPX4

            • Noise: ≤55dB(A)

              • Load: 1000N (Push)

                • Speed: 40mm/sec

                  • RPM: 3700/min

                    • Ambient Temperature: 0-+40℃

• 1、Function: The linear actuator provides a maximum thrust of 1000N. which can forcefully lift the electric device. Stroke length 111in/333mm.

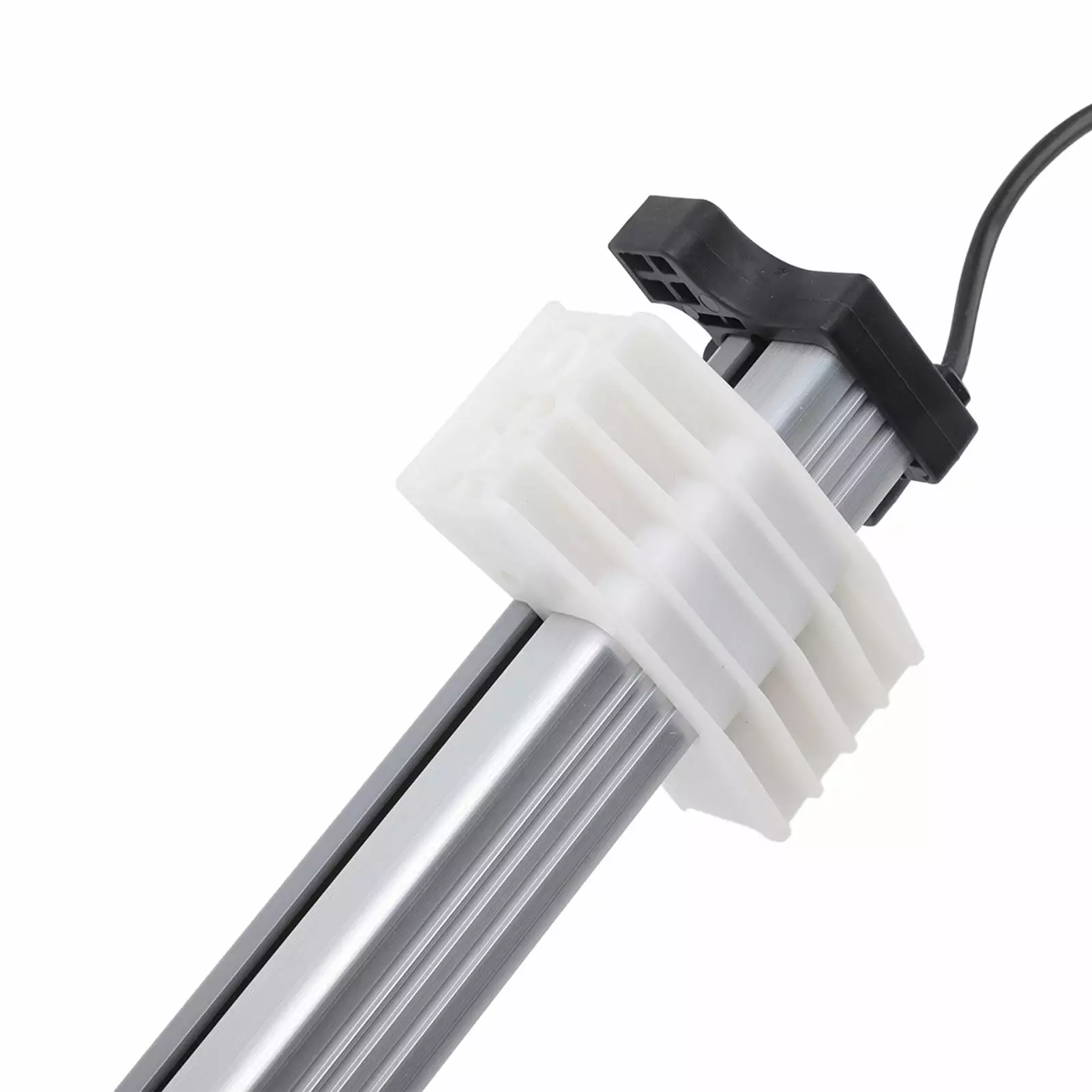

• 2、Easy Use: Linear electric actuator with nut sliding on aluminium profile. Very convenient to use for reclining chairs and TV lifts. etc.
• 3、Low Operating Noise: The power recliner motor actuator works quietly and runs stably at a noise level below 55 decibels.
• 4、Wide Application: Power recliner inear actuator is widely used in electric sofa. massage chair. lift chair to meet your different needs.
• 5、Easy Installation: The linear drive is adjustable and detachable. the installation process is not complicated. it is very labor saving. and the operation is more reliable.
